Alexa skill to get data from web api
How to create alexa with lambda function calling web api using node.js
Click on create skill in order to create a new skill
Type skill name and choose custom skill.
Click on Create skill
Choose template - start from scratch
Click on Invocation - select invocation name by which alexa will point to.
Click on Intent then choose add intent
Create a name for intent which will act as parameter checker in lamda
function
Add Sample uttrances which will work as aliase for your intent.
To see the sample json for uttrances - Click on JSON Editor
{
"interactionModel": {
"languageModel":
{
"invocationName": "myzingonline",
"intents": [
{
"name": "AMAZON.FallbackIntent",
"samples": []
},
{
"name": "AMAZON.CancelIntent",
"samples": []
},
{
"name": "AMAZON.HelpIntent",
"samples": []
},
{
"name":
"AMAZON.StopIntent",
"samples": []
},
{
"name": "AMAZON.NavigateHomeIntent",
"samples": []
},
{
"name": "GetProteinIntake",
"slots": [],
"samples": [
"my today protien",
"tell me about my protien"
]
}
],
"types":
[]
}
}
}
Adding to inbuilt intent - By clicking on particular intent
Click on Add
And choose existing intent
Create a Skill service
Choose Author from scratch add function name and runtime as Nodejs xx
version number
Choose permission to existing role with basic execution

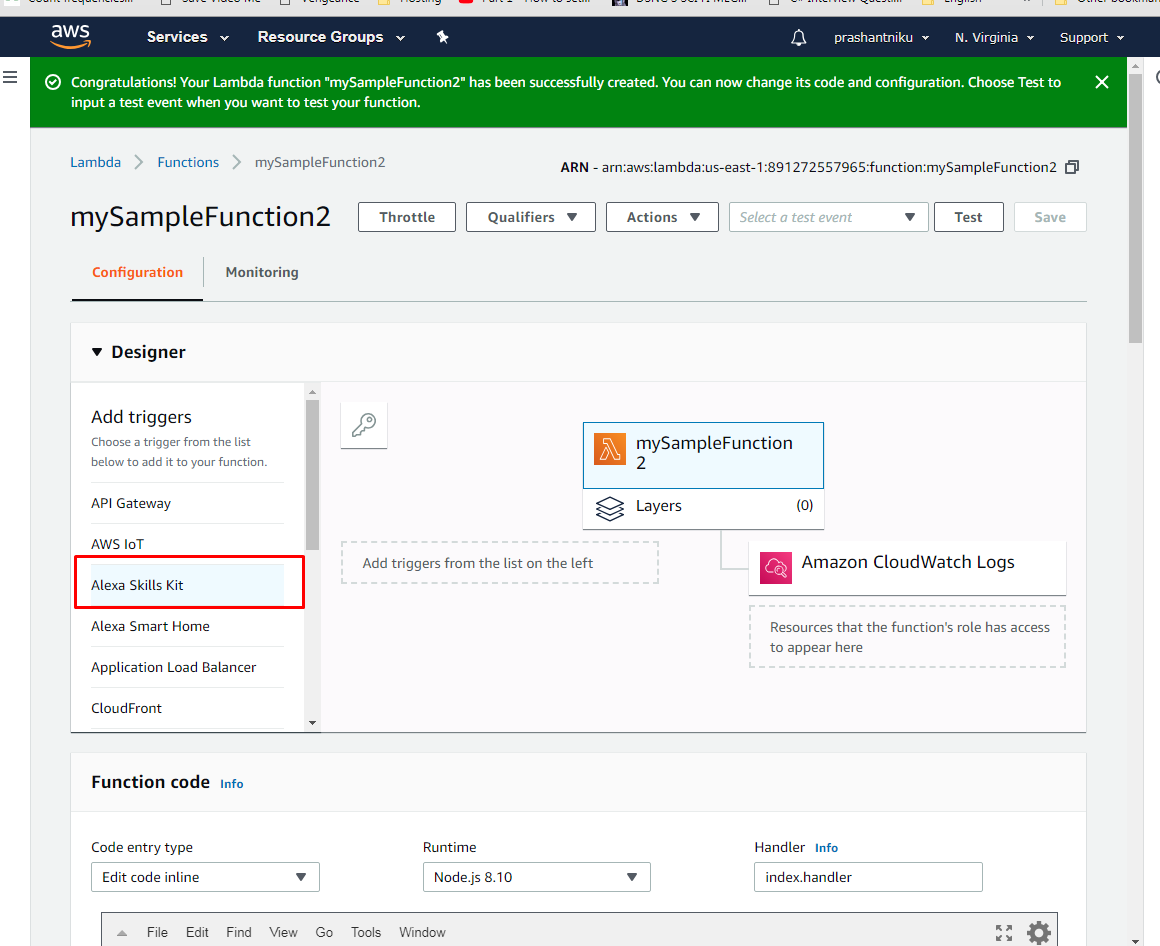

Click on Create function. It will show screen like this
Add trigger - Alexa skills kit
We need to add skill id in order to use Alexa skills kit

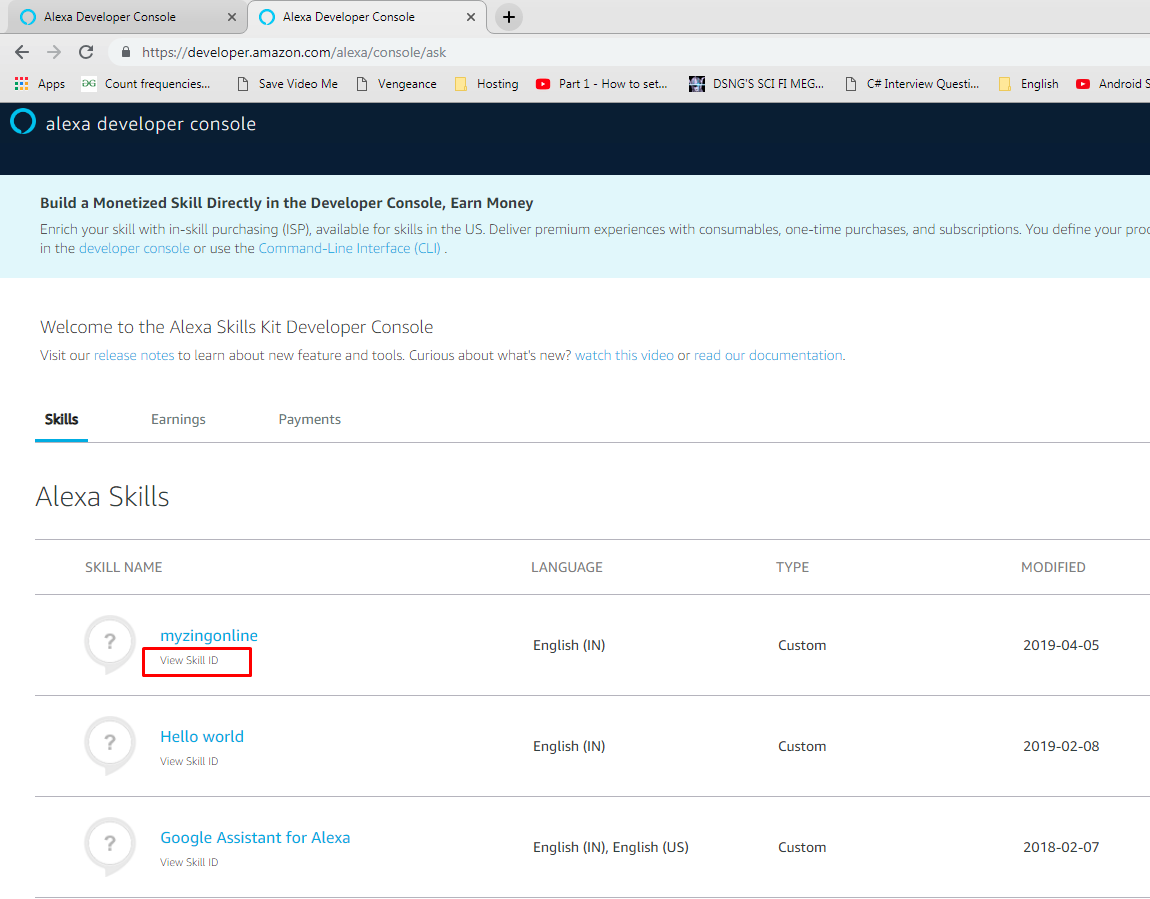

In order to get skill id we need to go to our skill page.
go to https://developer.amazon.com/alexa/console/ask
go to https://developer.amazon.com/alexa/console/ask
We need to copy and paste it to lambda trigger.
amzn1.ask.skill.16558811-1b0c-43cc-973b-f4b2054fa4c3
Click on Lambda function in order to configure it.
It will show
Note : So if you need to use web service we need to upload nodmodule with request
dll.
So choose upload a .zip file
We need to zip inside this and then upload it as zip folder.
After save
var request = require("request")
// Route the incoming request based on type (LaunchRequest, IntentRequest,
// etc.) The JSON body of the request is provided in the
event parameter.
exports.handler = function (event, context) {
try {
console.log("event.session.application.applicationId=" +
event.session.application.applicationId);
/**
* Uncomment
this if statement and populate with your skill's application ID to
* prevent
someone else from configuring a skill that sends requests to this function.
*/
// if
(event.session.application.applicationId !== "") {
// context.fail("Invalid Application
ID");
// }
if
(event.session.new) {
onSessionStarted({requestId: event.request.requestId}, event.session);
}
if
(event.request.type === "LaunchRequest") {
onLaunch(event.request,
event.session,
function callback(sessionAttributes, speechletResponse) {
context.succeed(buildResponse(sessionAttributes, speechletResponse));
});
} else if (event.request.type ===
"IntentRequest") {
onIntent(event.request,
event.session,
function callback(sessionAttributes, speechletResponse) {
context.succeed(buildResponse(sessionAttributes, speechletResponse));
});
} else if
(event.request.type === "SessionEndedRequest") {
onSessionEnded(event.request, event.session);
context.succeed();
}
} catch (e) {
context.fail("Exception:
" + e);
}
};
/**
* Called when the
session starts.
*/
function onSessionStarted(sessionStartedRequest, session) {
// add any session
init logic here
}
/**
* Called when the
user invokes the skill without specifying what they want.
*/
function onLaunch(launchRequest, session, callback) {
getWelcomeResponse(callback)
}
/**
* Called when the
user specifies an intent for this skill.
*/
function onIntent(intentRequest, session, callback) {
var intent =
intentRequest.intent
var intentName =
intentRequest.intent.name;
// dispatch custom
intents to handlers here
if (intentName ==
"GreetHelloWorld") {
handleGetInfoIntent(intent, session, callback)
} else {
throw
"Invalid intent"
}
}
/**
* Called when the
user ends the session.
* Is not called when
the skill returns shouldEndSession=true.
*/
function onSessionEnded(sessionEndedRequest, session) {
}
// ------- Skill specific logic -------
function getWelcomeResponse(callback) {
var speechOutput =
"Welcome! Do you want to hear about some facts?"
var reprompt =
"Do you want to hear about some facts?"
var header =
"Get Info"
var
shouldEndSession = false
var
sessionAttributes = {
"speechOutput" : speechOutput,
"repromptText" : reprompt
}
callback(sessionAttributes, buildSpeechletResponse(header, speechOutput,
reprompt, shouldEndSession))
}
function handleGetInfoIntent(intent, session, callback) {
var speechOutput =
"We have an error"
getJSON(function(data) {
if (data !=
"ERROR") {
var
speechOutput = data
}
callback(session.attributes,
buildSpeechletResponseWithoutCard(speechOutput, "", true))
})
}
function url() {
return
"http://en.wikipedia.org/w/api.php?action=query&format=json&list=search&utf8=1&srsearch=Albert+Einstein"
}
function url2() {
return {
url:
"https://api.nytimes.com/svc/books/v3/lists.json",
qs: {
"api-key" : "8430ae194d0a446a8b1b9b9d607b2acc",
"list" : "hardcover-fiction"
}
}
}
function getJSON(callback) {
//HTTP - WIKPEDIA
request.get(url(),
function(error, response, body) {
var d =
JSON.parse(body)
var result =
d.query.searchinfo.totalhits
if (result
> 0) {
callback(result);
} else {
callback("ERROR")
}
})
// HTTPS with NYT
//
request.get(url2(), function(error, response, body) {
// var d = JSON.parse(body)
// var result
= d.results
// if
(result.length > 0) {
//
callback(result[0].book_details[0].title)
// } else {
//
callback("ERROR")
// }
// })
}
// ------- Helper functions to build responses for Alexa
-------
function buildSpeechletResponse(title, output, repromptText,
shouldEndSession) {
return {
outputSpeech:
{
type:
"PlainText",
text:
output
},
card: {
type:
"Simple",
title:
title,
content:
output
},
reprompt: {
outputSpeech: {
type:
"PlainText",
text:
repromptText
}
},
shouldEndSession:
shouldEndSession
};
}
function buildSpeechletResponseWithoutCard(output,
repromptText, shouldEndSession) {
return {
outputSpeech:
{
type:
"PlainText",
text:
output
},
reprompt: {
outputSpeech: {
type:
"PlainText",
text:
repromptText
}
},
shouldEndSession: shouldEndSession
};
}
function buildResponse(sessionAttributes, speechletResponse)
{
return {
version: "1.0",
sessionAttributes: sessionAttributes,
response:
speechletResponse
};
}
function capitalizeFirst(s) {
return
s.charAt(0).toUpperCase() + s.slice(1)
}
Add intent name to onIntent method according to your intent name.
/**
* Called when the
user specifies an intent for this skill.
*/
function onIntent(intentRequest, session, callback) {
var intent =
intentRequest.intent
var intentName =
intentRequest.intent.name;
// dispatch custom
intents to handlers here
if (intentName ==
"GreetHelloWorld") {
handleGetInfoIntent(intent, session, callback)
} else {
throw
"Invalid intent"
}
}
So whenever any uttrence will match from alexa skill it send
the Intentname to lamda function and then we can write logic for giving the
response.
that is using .get method of request library in node.js
which gets the information from give url.
Web api is returning
So we need to parse the data accordingly
Click Save to save the changes.
full index.js
var request = require("request")
// Route the incoming request based on type
(LaunchRequest, IntentRequest,
// etc.) The JSON body of the request is provided in the
event parameter.
exports.handler = function (event, context) {
try {
console.log("event.session.application.applicationId=" +
event.session.application.applicationId);
/**
*
Uncomment this if statement and populate with your skill's application ID to
* prevent
someone else from configuring a skill that sends requests to this function.
*/
// if
(event.session.application.applicationId !== "") {
// context.fail("Invalid Application
ID");
// }
if (event.session.new)
{
onSessionStarted({requestId: event.request.requestId}, event.session);
}
if
(event.request.type === "LaunchRequest") {
onLaunch(event.request,
event.session,
function callback(sessionAttributes, speechletResponse) {
context.succeed(buildResponse(sessionAttributes, speechletResponse));
});
} else if
(event.request.type === "IntentRequest") {
onIntent(event.request,
event.session,
function callback(sessionAttributes, speechletResponse) {
context.succeed(buildResponse(sessionAttributes, speechletResponse));
});
} else if
(event.request.type === "SessionEndedRequest") {
onSessionEnded(event.request, event.session);
context.succeed();
}
} catch (e) {
context.fail("Exception: " + e);
}
};
/**
* Called when the
session starts.
*/
function onSessionStarted(sessionStartedRequest, session)
{
// add any
session init logic here
}
/**
* Called when the
user invokes the skill without specifying what they want.
*/
function onLaunch(launchRequest, session, callback) {
getWelcomeResponse(callback)
}
/**
* Called when the
user specifies an intent for this skill.
*/
function onIntent(intentRequest, session, callback) {
var intent =
intentRequest.intent
var intentName
= intentRequest.intent.name;
// dispatch
custom intents to handlers here
if (intentName
== "GetProteinIntake") {
handleGetInfoIntent(intent, session, callback)
} else {
throw
"Invalid intent"
}
}
/**
* Called when the
user ends the session.
* Is not called
when the skill returns shouldEndSession=true.
*/
function onSessionEnded(sessionEndedRequest, session) {
}
// ------- Skill specific logic -------
function getWelcomeResponse(callback) {
var
speechOutput = "Welcome! Do you want to hear about some facts?"
var reprompt =
"Do you want to hear about some facts?"
var header =
"Get Info"
var
shouldEndSession = false
var
sessionAttributes = {
"speechOutput" : speechOutput,
"repromptText" : reprompt
}
callback(sessionAttributes, buildSpeechletResponse(header, speechOutput,
reprompt, shouldEndSession))
}
function handleGetInfoIntent(intent, session, callback) {
var
speechOutput = "We have an error"
getJSON(function(data) {
if (data !=
"ERROR") {
var
speechOutput = data
}
callback(session.attributes,
buildSpeechletResponseWithoutCard(speechOutput, "", true))
})
}
function url() {
return
"http://foodlogger-api.myzingonline.com/api/food/getalexa1"
}
function url2() {
return {
url:
"https://api.nytimes.com/svc/books/v3/lists.json",
qs: {
"api-key" : "8430ae194d0a446a8b1b9b9d607b2acc",
"list" : "hardcover-fiction"
}
}
}
function getJSON(callback) {
//HTTP -
WIKPEDIA
request.get(url(), function(error, response, body) {
var d =
JSON.parse(body)
var result
= d.name
if
(result.length > 0) {
callback(result);
} else {
callback("ERROR")
}
})
// HTTPS with
NYT
//
request.get(url2(), function(error, response, body) {
// var d =
JSON.parse(body)
// var
result = d.results
// if
(result.length > 0) {
//
callback(result[0].book_details[0].title)
// } else {
//
callback("ERROR")
// }
// })
}
// ------- Helper functions to build responses for Alexa
-------
function buildSpeechletResponse(title, output,
repromptText, shouldEndSession) {
return {
outputSpeech: {
type:
"PlainText",
text:
output
},
card: {
type:
"Simple",
title:
title,
content: output
},
reprompt: {
outputSpeech: {
type: "PlainText",
text: repromptText
}
},
shouldEndSession: shouldEndSession
};
}
function buildSpeechletResponseWithoutCard(output,
repromptText, shouldEndSession) {
return {
outputSpeech: {
type: "PlainText",
text:
output
},
reprompt: {
outputSpeech: {
type: "PlainText",
text: repromptText
}
},
shouldEndSession: shouldEndSession
};
}
function buildResponse(sessionAttributes,
speechletResponse) {
return {
version:
"1.0",
sessionAttributes: sessionAttributes,
response:
speechletResponse
};
}
function capitalizeFirst(s) {
return
s.charAt(0).toUpperCase() + s.slice(1)
}
Now we need to add this lambda function as end point in skill setting.
And add it to Endpoint
Click on Save endpoint
Now Go to Intent and click on build model
Now Click on Test to test skill.
ask myzingonline my today protien
Change some function logic in lambda
Click save and re run test
0 comments:
Post a Comment
